General IQ130 UV LED Curable Black Ink Cartridge
General IQ130 Ink
IQ130 comes in a 45si type cartridge and has a shelf life of 5 months. The HP IQ130 Black ink is suitable for PET, PP, PVC, Gloss Card, Special PE, and Hard PVC card. General IQ130 is entirely compatible with and completely replaces General IQ128 UV ink.
This new generation of of UV LED curable inks offers better decap, and more efficient, higher speed curing than your current UV Curing ink, whether you are presently utilizing the Tritron LC Pro or General IQ128 ink.
Specifications:
- Cures under 395nm UV LED lamps to produce a high gloss, highly durable print image
- High Speed Curing: 30m / min. GLED-1, 8W/cm2
- Suitable for PET, PP, PVC, Gloss Card, Special PE, Hard PVC card
- Pigment, 45si type cartridge
- Shelf Life - now 5 months
Target Application - Applications which require high adhesion and durability.
Target Substrate - OPP / PET / PE / AL / Aqueous Varnish Coat / Blister Foil / Gravure Print Surfaces / Glass / Rubber / Paper / PVC etc
Ink Curing Conditions - At 300 x 600dpi

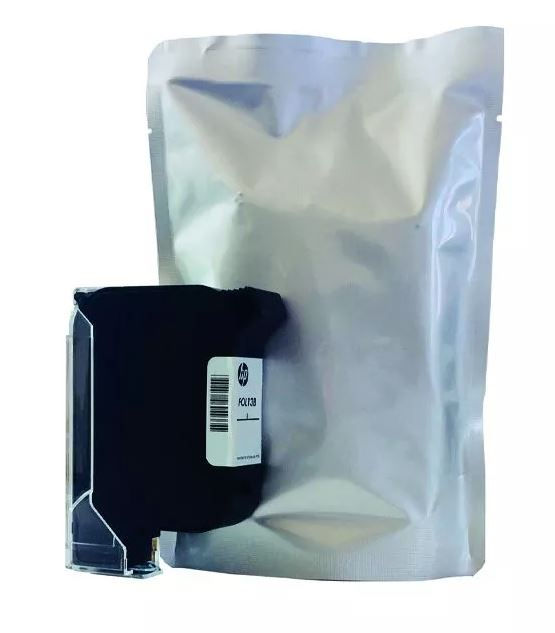

General IQ130 UV Curable Black Ink Cartridge
Firing Voltage: 10.0V
Pulse Width: 1.7μsec
Pulse Warming: OFF
Max Frequency: 12kHz
Shelf Life: 5 months
Storage Temp: 15-35℃ (59-95゜F)
- Shake a clipped cartridge with its head down for 30 seconds, and wipe nozzles gently before use.
- After use, attach a gel clip to the cartridge and keep it with its head position UP. When storing, make sure the cartridge is away from any light.
- This ink contains alcohol solvent. Make sure the room is well ventilated when this ink is used.
- When the nozzles are clogged, wipe them softly with dry lint free cloth or IPA Ethanol soaked cloth. Do not wipe with ink or water soaked cloth.
- When cleaning nozzles wipe them gently along with a direction of the nozzles with its head position down.
- Do not shake cartridges strongly, especially with no clip.
- The print performance varies depending on application or using condition. Conduct enough tests before official use.
- Using under the low humidity (Less than 35% RH) is not recommended.
- All data here is based on General CO/.LTD's laboratory experiment. Not guaranteed specification.
